GTO Neon Wire and Accessories
NEON GTO WIRE
Due to the ongoing USA GTO shortage, please check current availability.
GTO WIRE
Style #1: GTO-10 "Silicone"
High performance silicone insulation material proven tough and versatile. Has superior resistance to fire, flame, ozone, UV and corona.
STOCKED!
Little Know Factoid... GTO-10 is approved for all electronic transformers, even those with a 12kv output!
* Rated: 10kv max Conventional, 12kv max Electronic.
* 250 ft.
* Ventex #85373-250B and #85373-250W.
* Tinned copper 18 AWG, stranded.
* Outer diameter: .257 inches (6.4mm).
* Quite flexible.
* UL Listed.
* Conforms to UL Standard 814 for gas tube sign and ignition cable.
* Meets the integral sleeving requirement of UL Standard 814.
* Classified and meets UYTA requirements of UL Standards 879, 48.
* Imported.
* Available in BLACK or BRIGHT WHITE.
Compare the Whites!
By-the Foot: $2.99 10 ft. min
Call to Order!
Item: GTO-10-FT-BLK
Item: GTO-10-FT-WHT
250 ft. box: $279.95
Call to Order!
Item: GTO-10-BLK #85373-250B
Item: GTO-10-WHT #85373-250W
Style #2: GTO-15 "Regular"
* Rated 15,000vts Max.
* 250 ft.
* Paige Tuf-Hide #981298
* 14 AWG.
* Outer diameter: .265 inches.
* Not as flexible as silicone.
* USA UL Listed. CSA Canadian Listed.
* ROHS.
* Made in the USA.
* Only available in BLACK.
STOCKED!
By-the Foot: $1.99 per ft. 10 ft. min
Call to Order!
Item: GTO-15-FT #981298
250 ft. box: $139.95 each
Call to Order!
Item: GTO-15-BLK #981298
Style #3: GTO-15 "Silicone"
STOCKED!
* Rated 15,000vt Max.
* 250 ft.
* Paige Tuf-Hide #981514 / 981514-WHT
* 14 AWG.
* Outer Diameter: .265 inches.
* Very flexible Silicone insulation.
* UL Listed.
* Made in the USA.
* Available in BLACK or WHITE.
High performance silicone insulation material proven tough and versatile. Has superior resistance to fire, flame, ozone, UV and corona.
By-the Foot: $2.99 per ft. 10 ft. min
Call to Order!
Item: GTO-15-IS-FT-B *Black
Item: GTO-15-IS-FT-W *White
250 ft. box: $289.95 each
Call to Order!
Item: GTO-15-IS-BLK #981514 *Black
Item: GTO-15-IS-WHT #981514-WHT *White
A whopping 17% more silicone insulation than #3 Tuf-Hide
Style #4: GTO-15 "Silicone"
STOCKED!
* Rated 15,000VAC, 150 degrees C.
* 250 ft. Ventex #85373
* 14 AWG tinned stranded copper.
* Outer Diameter: .311 inches (7.9mm).
* Very flexible Silicone insulation.
* UL Listed and Canadian UL Listed.
* Conforms to UL Standard 814 for gas tube sign and ignition cable.
* Meets the Integral Sleeving requirements of UL standard 814.
* Classified and meets UYTA requirements of UL standard 879, 48.
* ROHS.
* Imported.
* Available in BLACK.
High performance silicone insulation material proven tough and versatile. Has superior resistance to fire, flame, ozone, UV and corona.
By-the Foot: $3.29 per ft. 10 ft. min
Call to Order!
Item: GTO-15-VT-FT-BLK #85373-FT *Black
250 ft. box: $339.95 each
Call to Order!
Item: GTO-15-VT-BLK #85373 *Black
ACCESSORIES
GTO Sleeving
-
UL for Dry, Damp and Wet.
-
1/2' O.D. (outer diameter).
-
3/8" I.D. (inner diameter).
-
15,000 volt maximum rating.
-
Color/s: Black.
-
50 foot rolls.
-
Made in the USA.
Use: Cover & protect GTO Wire.
STOCKED!
-
This sleeving meets the requirements of N.E.C. 600-32 or other equipment listed for this purpose.
-
This product is intended to sleeve no more than one GTO cable.
-
Sleeving is rated 105 degrees C and is UV resistant.
-
Sleeving is not intended to be used where the bend radius isless than 1/2".
-
Recommended for use in all secondary circuit wiring.
ADDITIONAL NOTES:
$119.95 ea. *50 ft. Black
Call to Order!
Item: MT-SLV50
All Sales are Final on Master's Technology products. No returns, exchanges or refunds.
Porcelain Federal Bushings
STOCKED!
-
Use: GTO pass thru grommet.
-
Dimensions: 1 1/16" L, 1 3/16" O.D.
-
100 count box or individually.
-
Imported.
(GTO Pass-Thru Wire Grommets)
ADDITIONAL NOTES:
-
Porcelain Federal Bushings are designed to allow safe passage of GTO cable thru raceway barriers.
-
Helps prevent fire and shock hazards as well as further protecting the GTO.
-
Provides safe GTO cable protection with electrical grade porcelain surface that protects in accordance with NEC code.
-
Exposed head features a baked-on gloss porcelain glaze.
-
Federal Bushing's come assembled with a die-cast lock-nut attached to the threaded ceramic Federal Bushing neck.
-
For proper installation, the minimum hole size in the sheet metal shall be 13/16" and the maximum hole size allowed should not exceed 15/16".
-
BLACK / WHITE
$1.99 ea. (minimum 10)
Call to Order!
Item: F-BUSH-B / F-BUSH-W
$135 100 ct. Case.
Call to Order!
Item: F-BUSH-B-C / F-BUSH-W-C
Bonding / Termination Plates
STOCKED!
-
Use: Install's thru ceilings, walls and raceways.
-
UL Dry, Damp and Wet.
-
Durable metal construction.
-
7/8" I.D. center mounting hole.
-
Made in the USA.
ADDITIONAL NOTES:
-
Meets req's of NEC. sect. 250 when installed per instructions.
All Sales are Final on Master's Technology products. No returns, exchanges or refunds.
2 1/2" Diameter ( MP-2.5" )
$79.95 - 50 ct. Case
Call to Order!
Item: MT-BTP2
3" Diameter ( MP-3" )
Sold Out - N/A
WESTRIM HI-VOLT
High Voltage Junction Box
-
Use: Makes connection between two GTO wires.
-
USA and Canadian UL Listed.
-
Durable metal and Porcelain construction.
-
Electrical Rating: 7,500 VAC to ground or 15,000 mid-point grounded.
Factory-new / old-stock.
No Warranty.
Very Limited Stock - when they are gone, well you know!
See full product info below
in the bottom
"RESOURCE CENTER"
All Sales are Final on this item. No returns, exchanges or refunds.
$29.95 each
Call to Order!
Item: WESTRIM-SB
Diversified Components Quik-Connects

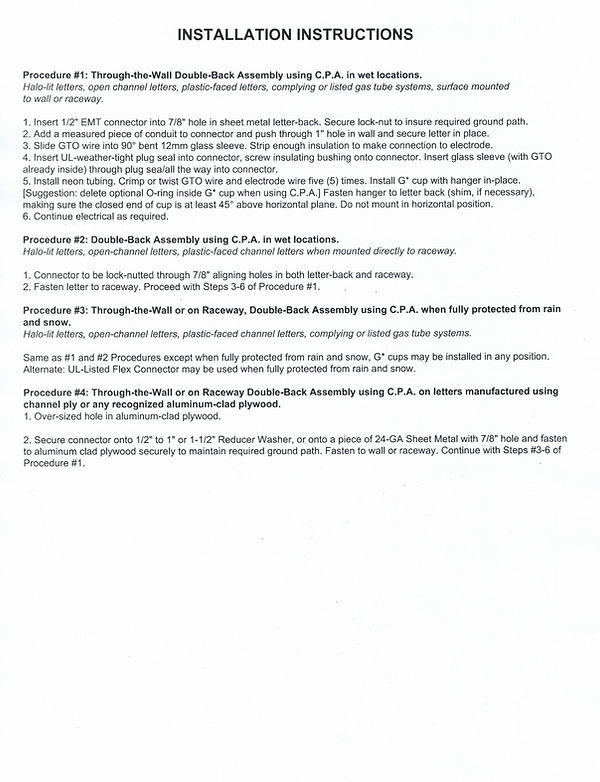

Thru-the-Wall HV Wiring System
One device does it all! Twist to connect… Simple and quick!
We know of no available commercially made high voltage splice boxes and/or inline GTO splicers. If anyone is aware of any, please let us know. Below is a way some have constructed their own inline splicers.
We are passing this information on for "informational purposes only".
We are not endorsing the construction and use of these.
10mm
10mm UL Listed Silicone Boots
$5 each *black or white
Call to Order!
Item: 10MM-SS-B-S *black
Item: 10MM-SS-W-S *white
Thank goodness someone
came up with this brilliant way
of splicing two GTO wires!
With no commercially
manufactured GTO Splice kits
on the market, having this
option is a godsend!
4" long "flame-polished"
10mm Glass Tubes:
$3 each *clear glass
Call to Order!
Item: 10MM-GLASS *clear
